The automatic excrement cleaning machine is mainly used for excrement cleaning of poultry and livestock, and it is the necessary assistant for poultry breeding.

Use and installation conditions:

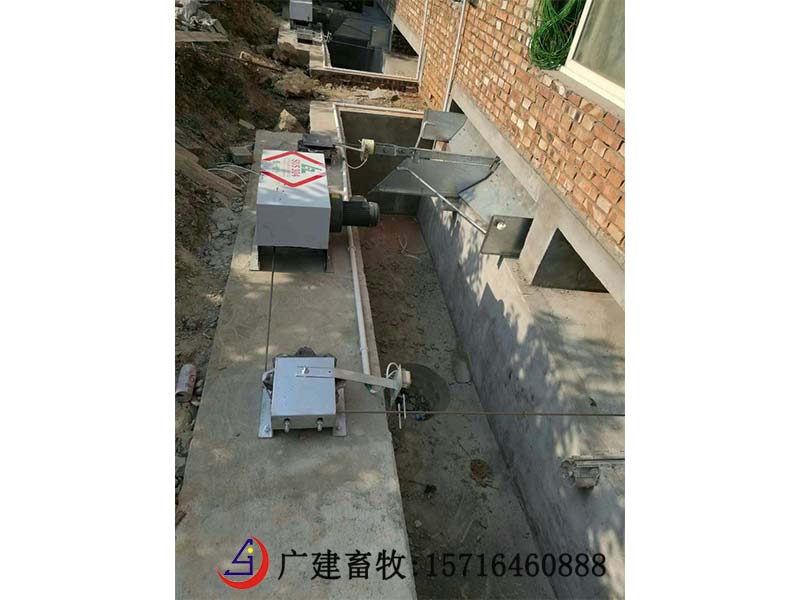

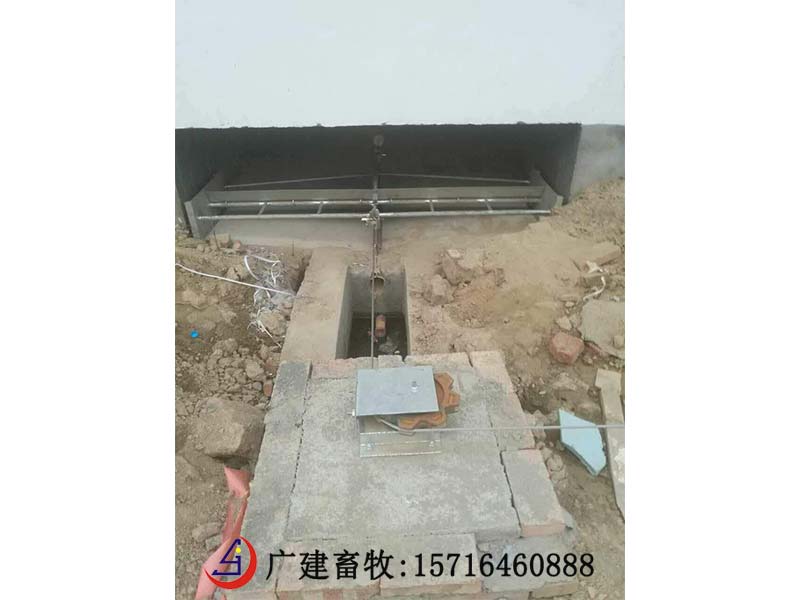

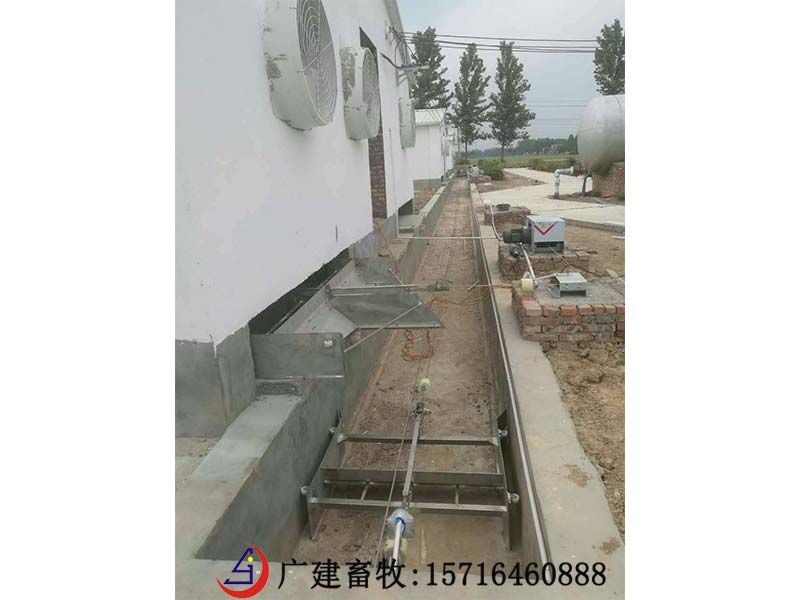

1. The traction host can be installed indoors or outdoors, and its installation platform height should be basically consistent with the horizontal level of the bottom of the defecation ditch. The width of the scraping board is designed and manufactured according to the width of the defecation ditch in the farm.

2. The depth of the defecation ditch is required to be 40cm-60cm, the two walls and the bottom are required to be relatively straight, there are no obstacles in the defecation ditch, and the defecation ditch can be inclined properly.

3. The main engine and angle wheel mounting fixings shall be embedded and installed firmly.

Structure features of pig house manure scraper:

1. It can realize unmanned management and automatic defecation;

2. Automatic temporary defecation, simple and quick operation, automatic and manual arbitrary conversion;

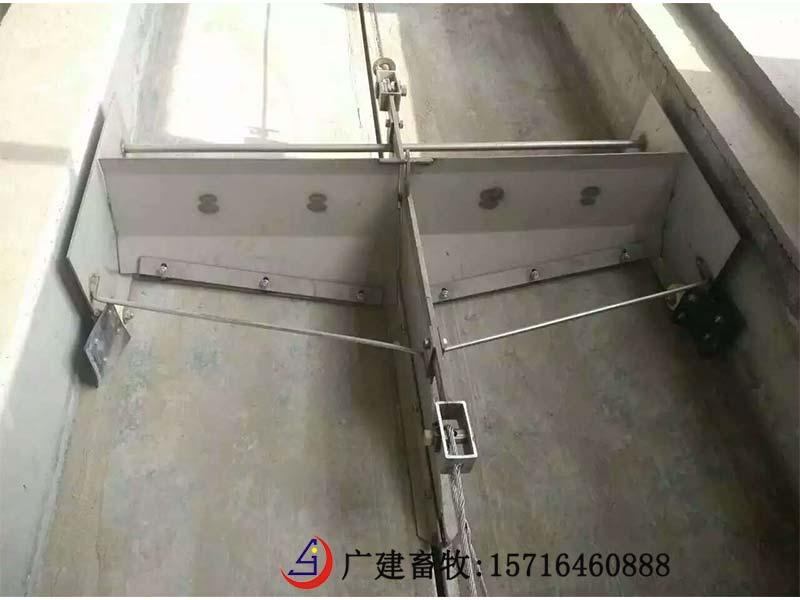

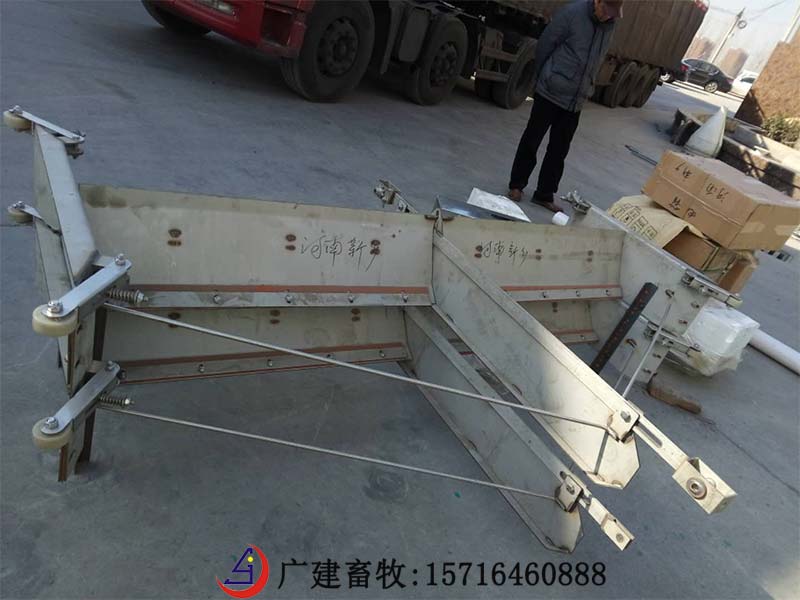

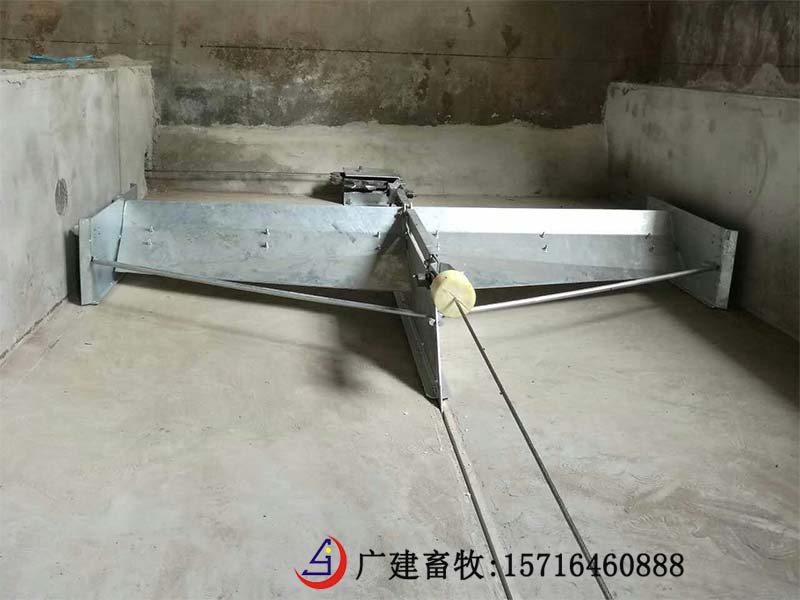

3. 8-wheel scraper design, scraper automatic retraction and release, adjustable board position, small friction, clean manure;

4. 220V single-phase power supply and 380V three-phase power output are optional;

5. One main machine can run 1-4 scraping boards, with the longest scraping distance of 140 meters. The traction mode of steel rope and linen rope is optional.
