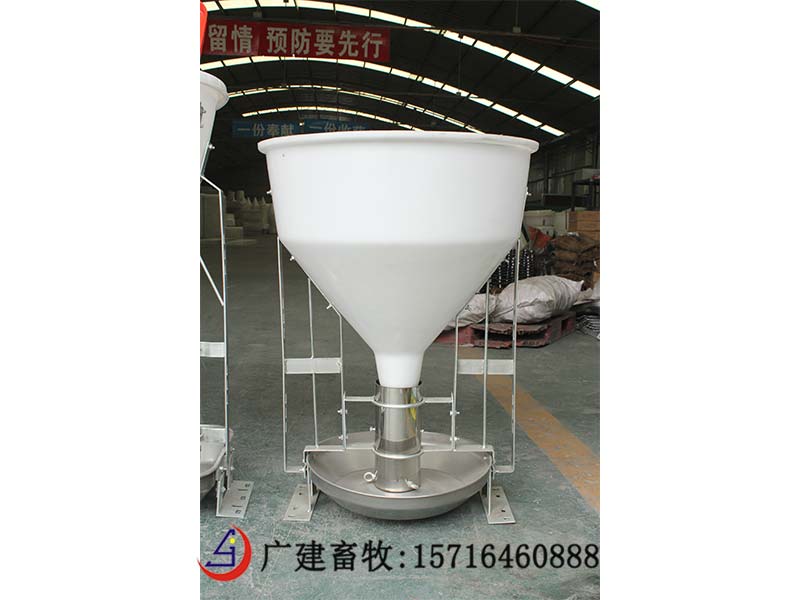

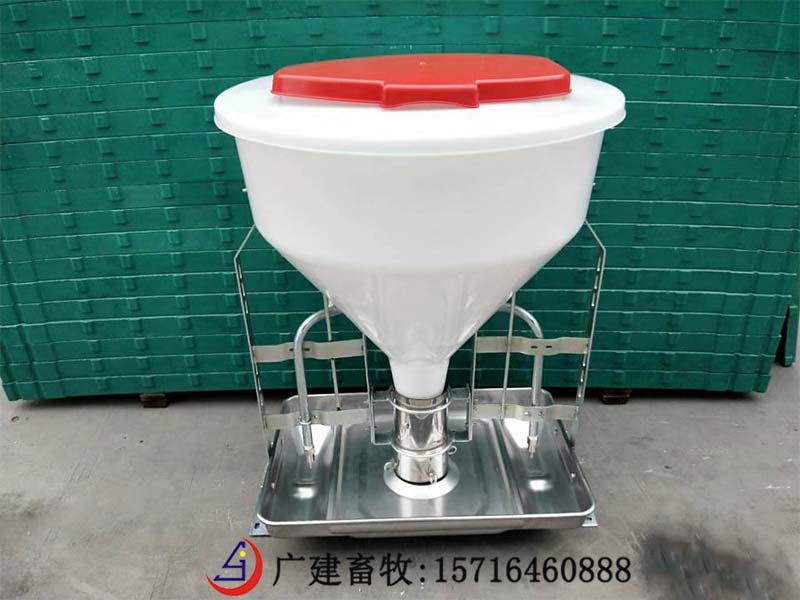

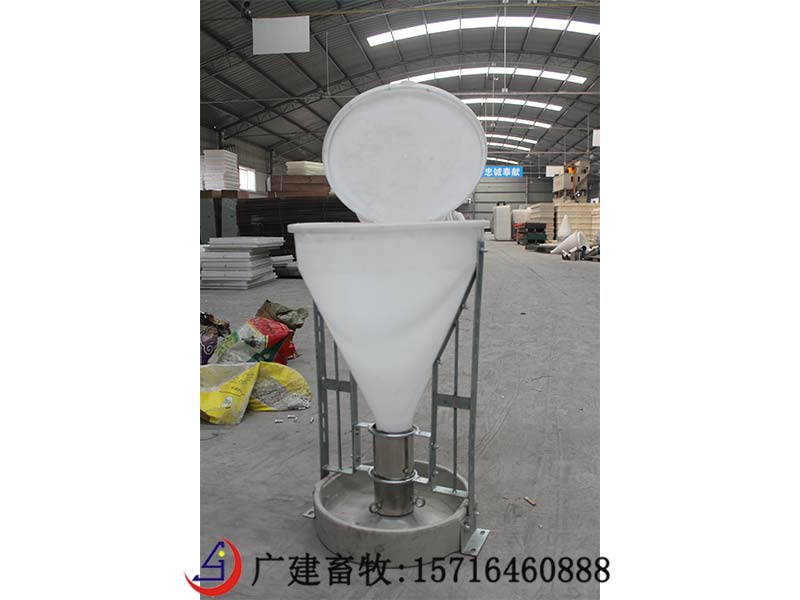

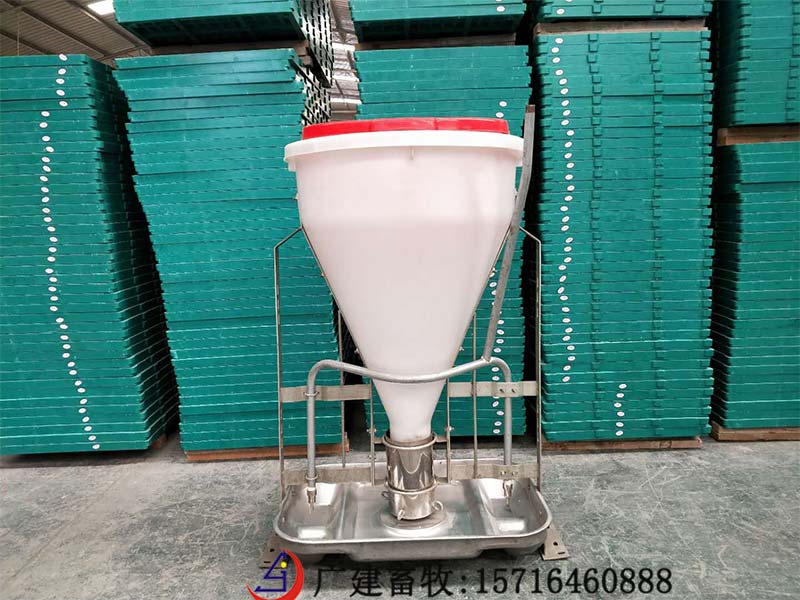

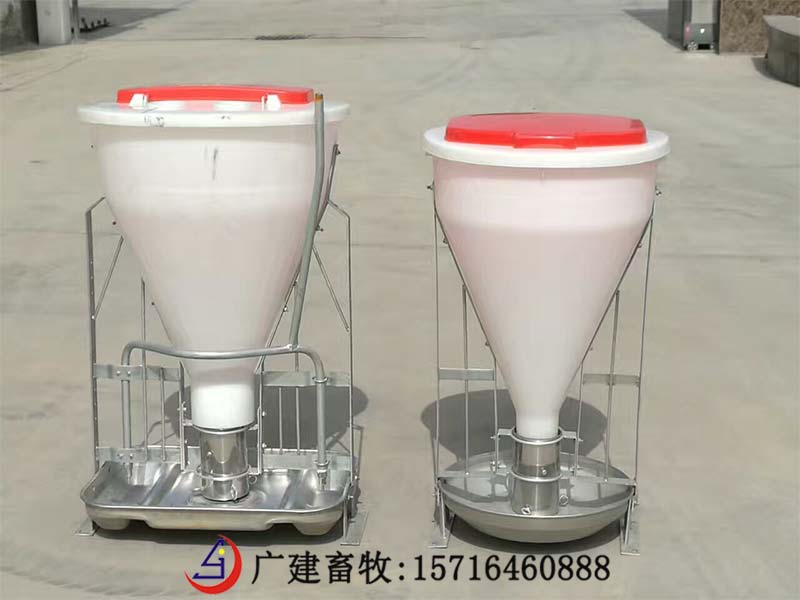

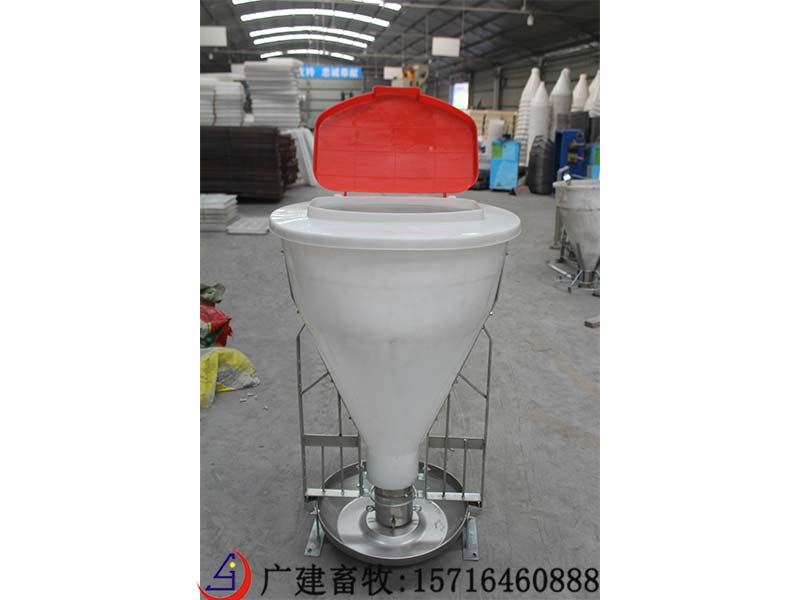

Wet and dry feeder, also called wet and dry feed chute, wet and dry feed chute and wet and dry feed chute, is a modern automatic feeding equipment for pigs produced by our company, which realizes the function of feeding dry feed and drinking water at the same time. It is mainly used in the conservation or fattening stage of pig farm.

Structure composition:

  The dry and wet feeder is composed of stainless steel chassis, plastic can body, thickened galvanized plate bracket, barrel cover, galvanized water pipe and other parts.

working principle:

  The dry and wet material trough is provided with a hopper and a vertical material pipe. The bottom opening of the lower part of the hopper is connected with the vertical material pipe. There is a material plug at the bottom of the hopper. The material plug is fixed on a central straight rod. The central straight rod passes through the vertical material pipe, and the lower end is provided with a material discharge stop rod. When the pig is hungry, the material discharge stop rod is arched, the material plug is lifted, the feed is put into the trough, the pig eats, the material rod is returned, the material plug is closed, and the material plug is put The material is temporarily stopped. After the material is finished, the pig arches the pole to put the material until it is full.

Advantage:

1. Rotary automatic feeding: the feeding pig can touch the touch bar at the base plate of the dry and wet material trough with its mouth to automatically feed, free feeding and reduce the labor intensity.

2. Convenient drinking water: equipped with automatic water dispenser, convenient water supply.

3. Two feeding methods, dry and wet, save material and have good fattening effect.

4. Durable and beautiful: the steel strip with thickness of 4-5mm is welded and formed, and the surface is hot-dip galvanized, which can bear the impact force when eating.

5. Increase the food intake by more than 20%, and can be released more than 7 days in advance.

6. Stainless steel bottom groove is easy to remove and wash.

7. It can prevent mosquitoes, flies and rats from polluting the feed.

8. The unique cutting method can avoid feed waste.
