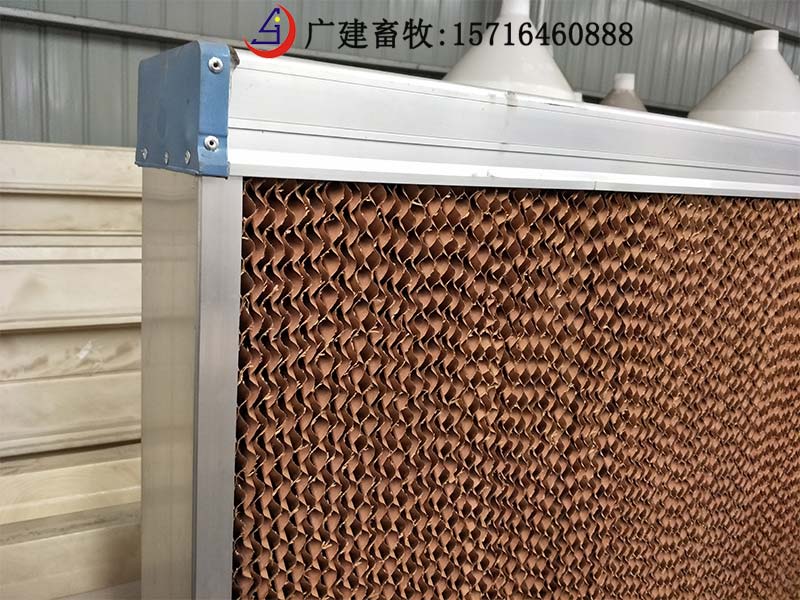

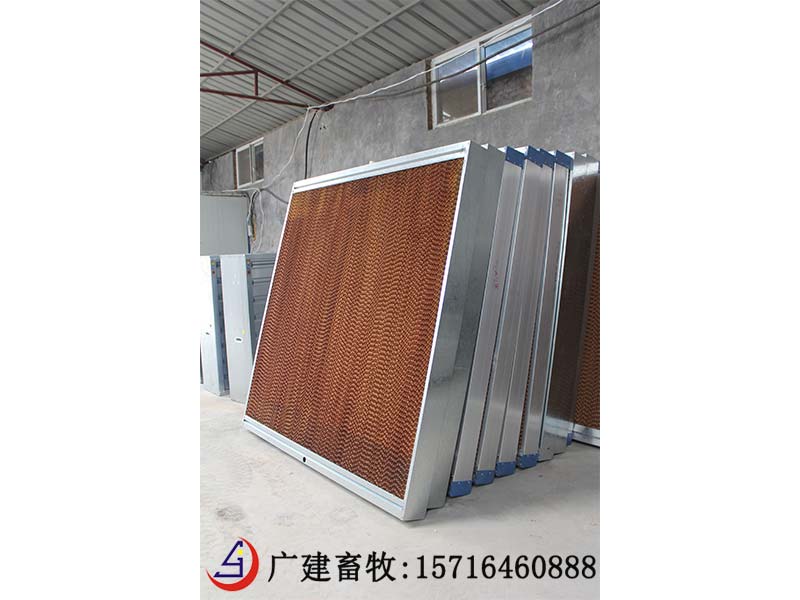

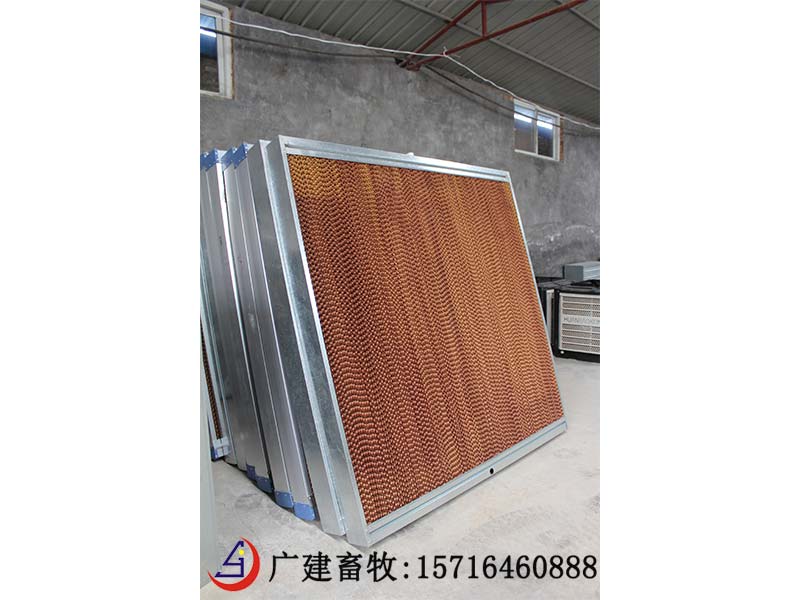

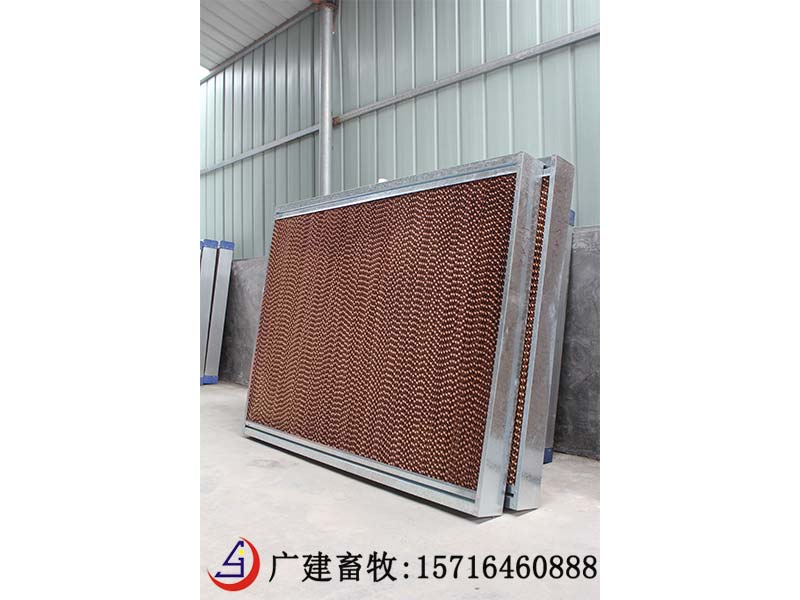

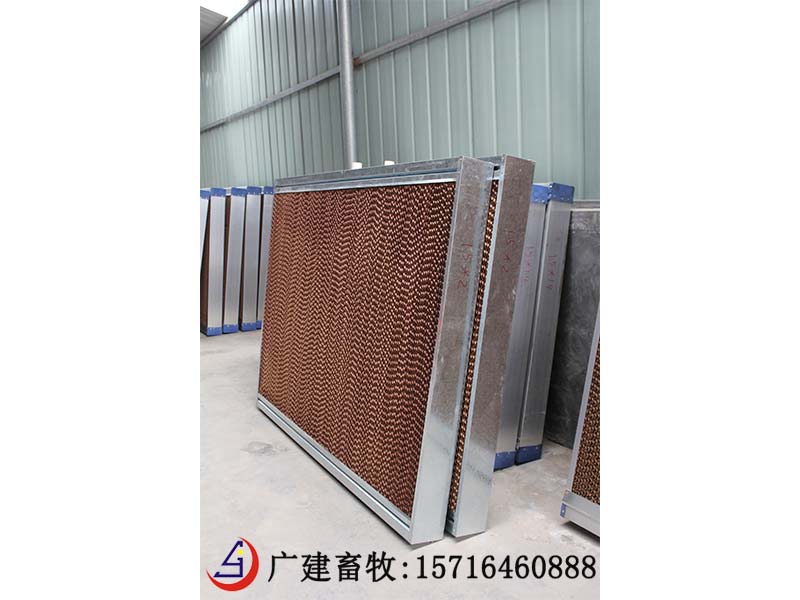

The water curtain wall produced by our company mainly adopts galvanized plate frame, aluminum alloy frame and stainless steel frame. The water curtain paper adopts Jiamusi original pulp paper with thickness of 15cm, and the length and width can be specially customized according to the actual situation of the farm.

Common specifications: 1.5 * 2m 1.5 * 3M 2 * 2m 2 * 3M.

Working principle of water curtain

  A cooling water curtain / wet curtain wall cooling device is installed at one end of the plant window, and a negative pressure fan is installed at the opposite end. The negative pressure fan is used to extract the hot air in the plant. During the ventilation, heat dissipation and dust removal, the air pressure difference between indoor and outdoor causes the outside air to evaporate through the water film formed by the cooling water curtain / wet curtain wall and absorb the heat instantly. The source of the cool air will not be available Break into the plant interior, and then create a comfortable, cool, fresh working environment. No matter how hot the summer is, the cooling wet curtain + negative pressure fan ventilation and cooling system can keep the temperature of your plant between 24 ℃ ~ 29 ℃, make the air circulate indoors and outdoors, increase the oxygen content of the air, greatly reduce the occurrence of occupational diseases, and improve the work efficiency!

purpose

Water curtain is mainly used in various farms and industrial plants.

Advantages of water curtain

1. The efficient and energy-saving water curtain cooling system uses the combination of fan and water curtain to artificially reproduce the physical process of water evaporation cooling in nature. The power consumption is only one tenth of the traditional air conditioning.

2. With the cooperation of the whole system, the exhaust fan can quickly exhaust the hot air, exhaust gas and peculiar smell produced by the indoor personnel and machine, avoiding the stimulation of exhaust gas and peculiar smell to human body. The whole indoor air can be renewed once in a minute, which is the effect that general air conditioning cannot achieve.

3. Improve work efficiency to solve the problem of workers' attention decline caused by sultry and oxygen deficiency. Using water curtain to cool down can not only solve the heat problem of the workshop, but also produce negative ion oxygen to increase the oxygen content in the air at the same time of water evaporation and cooling, so as to regulate the mood, alleviate fatigue and improve the work efficiency.

4. Water is used as refrigerant in the health and environmental protection system, which has no pollution to the environment during manufacturing and use. Besides reducing air humidity, the water curtain can also purify dust and particles carried by the outside air. Efficient circulation of fresh air can effectively prevent occupational disease rate and infectious diseases.

5. Strong applicability the air conditioning system of water curtain type factory has wide applicability. It can play a significant role in places with large heat source, pollution and poor ventilation. For example, textile workshop, garment workshop, injection workshop, hardware factory, shoe material factory, electronic factory, etc. can design corresponding water curtain cooling system according to their different environment, and adjust different wind speed and air volume according to the specific situation of the room, which is very flexible.
